Call for Price

In Stock

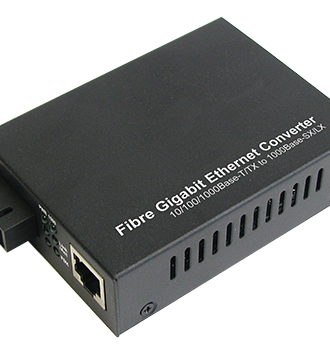

GIGABIT MEDIA CONVERTER

Compare
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/growthtechbd/public_html/wp-content/themes/gon/framework/woo_hooks.php on line 464

* In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T, IEEE802.3z,1000base-     SX/LX, IEEE802.1a, IEEE802.1PQ0S, IEEE802.1d Spanning Tree
* MDI/MDI-X Auto Negotiation
* Supports 2U 19” System Chassis , holds up to 14pcs standalone type media converter or 16pcs card based media converter
* Hot Pluggable & Wall-Mountable
* Stable performance more than 50thousand hours with fault-free
* Unique IC solution applied
* Supports 10/100Mbps and 10/100/1000M full/half duplex, easy upgrades
* Supports VLAN transmission
* Stable performance more than 50 thousands hours with fault-free
* In conformity with safety code of FCC, CE and RoHS.



Specifications

Rate self-adaptive 10/100/1000M
Protocol supported IEEE802.3/IEEE802.3U etc.
Fiber type single fiber
Optic mode single mode
Transmission mode half / full duplex
Ethernet interface RJ45
Optic interface SC/FC/ST
Optic wavelength 1310/1550nm,1490/1550nm
BER < 1/1000000000
MTBF 3 years
POWER 2.5W
Power supply AC220V/0.5A, DC-48 V /0.5A, DC5V/1A
Working temperature Normal 0~50℃ or Industrial -40~85℃
Working humidity 5%-95%
Storage temperature -40℃~70℃
Storage humidity 5%~95%(no-condensing)
Weight 0.38KG
Dimensions 229x122x50mm for packing, 94×70.6×26.5mm for device
