Features

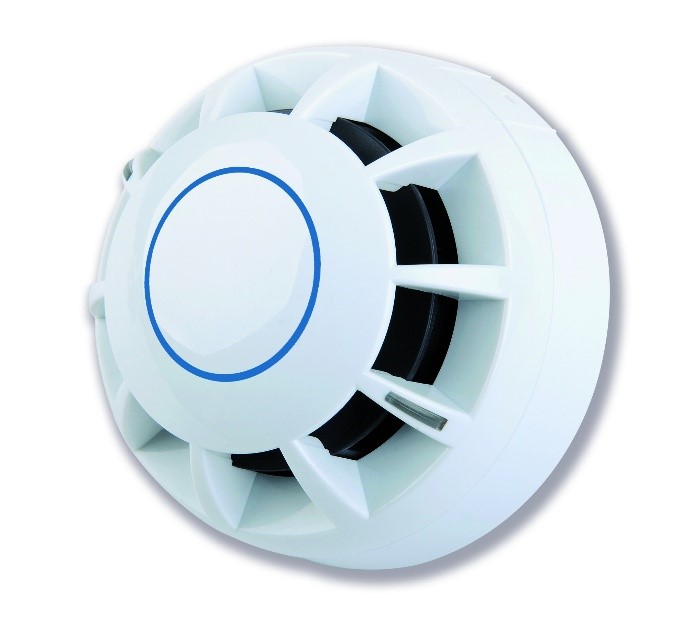

- A high-quality multi-sensor fire detector offering outstanding detection performance at a very competitive price.
- Manufactured by C-TEC in the UK.
- Third-party certified to EN54-5 and 7 by Intertek (also tested to pr-EN54-29)
- Wide 6-33V DC operating voltage.
- Two 8mm x 2mm ultra-bright red LED indicating strips offering 360º visibility.
- Drift compensation functionality ensures detector sensitivity is automatically calibrated to suit prevailing conditions and/or increased contamination levels allowing a greater than 8 year life-span.
- Incorporates a heat and smoke sensor making it deal for detecting a wide range of fires whilst also reducing false alarms.
- Compatible with our ActiV C4408D diode, C4408 non-diode and C4408R relay bases.
Specifications
| Approvals/certifications | Certified to EN54-5 & 7 by Intertek (0359-CPR-00183). |
| Application/operation | As well as operating independently, the C4414’s smoke & heat sensors combine to produce a sensitive response to freely burning fires, e.g. when a rise in heat is detected, its smoke response level reduces for improved detection and reduced false alarms. |
| Application temperature | 25°C typical, 50°C max. |
| Static response temperature | 54°C min, 65°C max. |
| Sensitivity | Nominal alarm threshold of 0.16db/m obscuration measured in accordance with EN54-7:2000. |
| Supply wiring | 2-wire monitored, polarity sensitive. |
| Supply/operating voltage | 6 to 33V DC. |
| Quiescent current | 30µA @ 24 VDC |
| Alarm voltage | 6-33V DC |
| Alarm current | 19mA @ 12-33V DC; 11mA @ 9V DC; 2.5mA@ 6V DC |
| Alarm reset voltage | Less than 1V DC (+0.5 seconds alarm reset time) |
| Expansion connections | Remote LED output available via ActiV base. Current source to the negative line, short-circuit protected. Max voltage 2.7V DC |
| Product dimensions (mm) | 102.2mm diameter x 37mm deep (detector in base); 102.2mm diameter x 57.5mm deep. |
| Construction & finish | White polycarbonate casing rated to UL94 V-2 with nylon parts. |
| IP Rating | IP42. |
| Weight | 99g. |
